Precision Medium Duty Live Center, MT4 Morse Taper Rotary Center Heavy Duty High Speed Live Tailstock Center for High-Speed Lathes, CNC Lathes

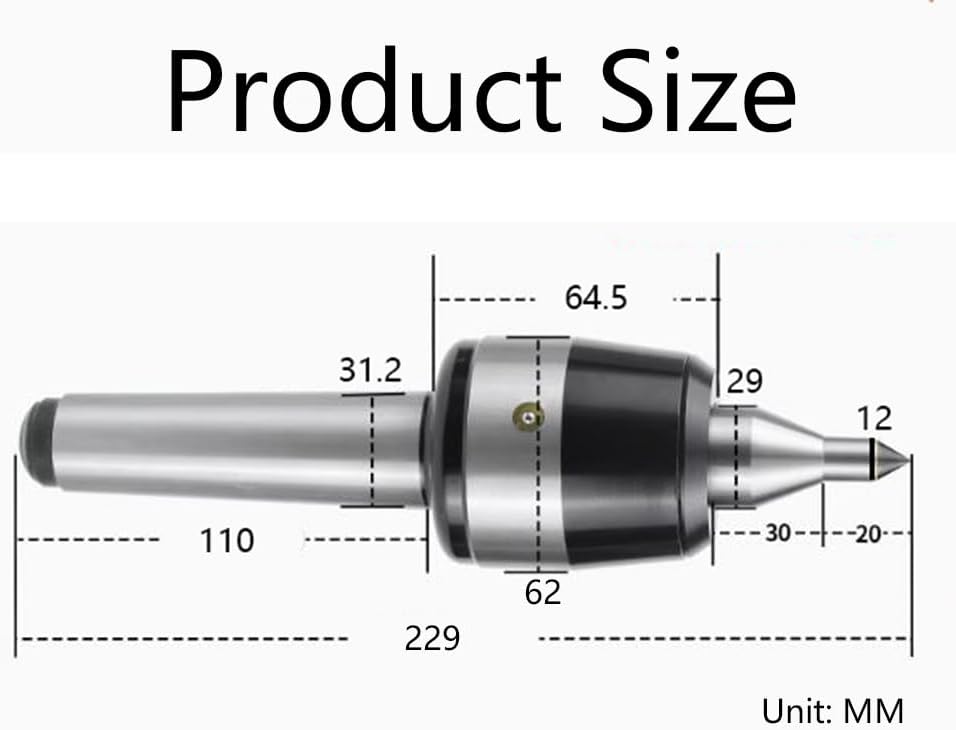

Our MT4 live center has the characteristics of high precision, large bearing capacity, and high rigidity, which is very beneficial for precision machining and strong cutting. With the help of the positioning of the tip, the processed parts can achieve high dimensional accuracy. It is an indispensable accessory in today's mechanical processing.DetailsSmooth Edges: They can effectively care for your skin when using or cleaning this product.Long Spindle Point: It extends into needle bearing supported shank to effectively improve rotating performance and reduce vibration.Alternate Color: The alternating distribution of black and silver enhances the aesthetic appeal of the product.SpecificationsModel: MT4Style: ModernMaterial: 40CR SteelProcess: Quenching, Precision MachiningColor: Black, SilverMaximum Rotational Speed: About 800/1000rpmMax Weight of Work Piece: About 250kg/551.1lbsConcentricity: ＜0.002mm/0.00008inAngle: 60°Total Tip Length: 50mm/2inHandle Diameter: 31.2mm/1.22inSmall Head Diameter: 12mm/0.47inLarge Head Diameter: 29mm/1.14inSmall Tip Length: 20mm/0.79inBody Diameter: 62mm/2.44inGross Weight: 1.67kg/3.7lbsNet Weight: 1.5kg/3.3lbsPackage Included1* MT4 Live Center

• Premium Material: Made of 40CR steel with quenching and precision machining processes, this product has excellent durability and good resistance to wear, which is suitable for your heavy-duty work.
• High Accuracy: The MT4 active center adopts a triple bearing design (deep groove ball bearing, thrust ball bearing, needle roller bearing) to ensure more stable and smooth rotation, and the accuracy is guaranteed within 0.0003".
• Thoughtful Design: With precision bearings and shockproof design, the product has better stability and safer operation. Moreover, the tight fit inside the front cover prevents cutting fluid and impurities from entering and extends the life of the bearing thimble.
• Convenient Oiling: The design of the oiling hole facilitates the regular addition of lubricating oil(not included), reducing bearing load, effectively protecting bearings from wear, and extending service life.
• Wide Application: The 4MT live center is specially designed for medium-speed precision machining lathes with medium load, suitable for high-speed lathe, CNC lathe, and general manual lathe.
